E-Bike Conversion Kit 36V 250W 20" Front Motor Hub Motor Kit DIY E-Bike LCD Display
1. Technical Description

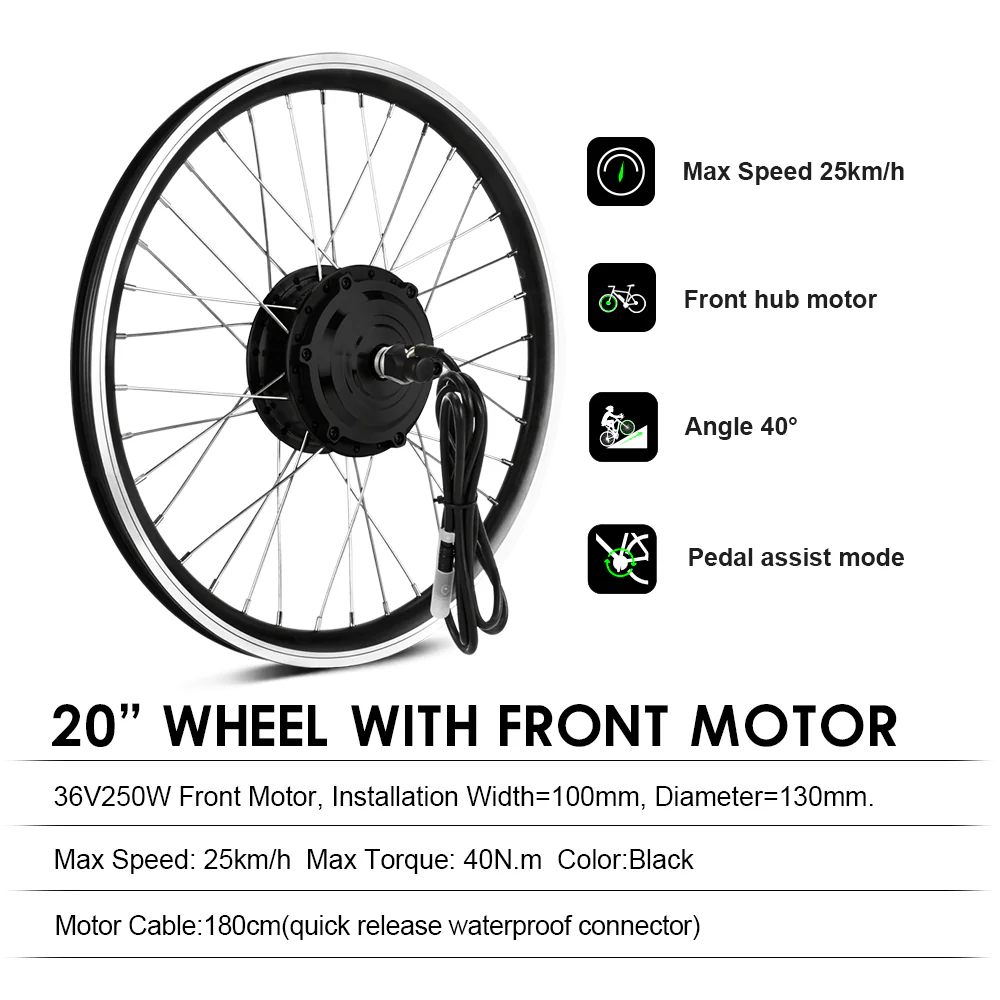

1) 36V 250W brushless geared front motor, stable and powerful;
2) comes with 20" double wall rim and 13G silver spokes, fit for 20" bikes;
3) the max speed of motor is 25km/h;
4) the max torque of motor is 40N.m;
5) compatible with V-brake and disc brake;

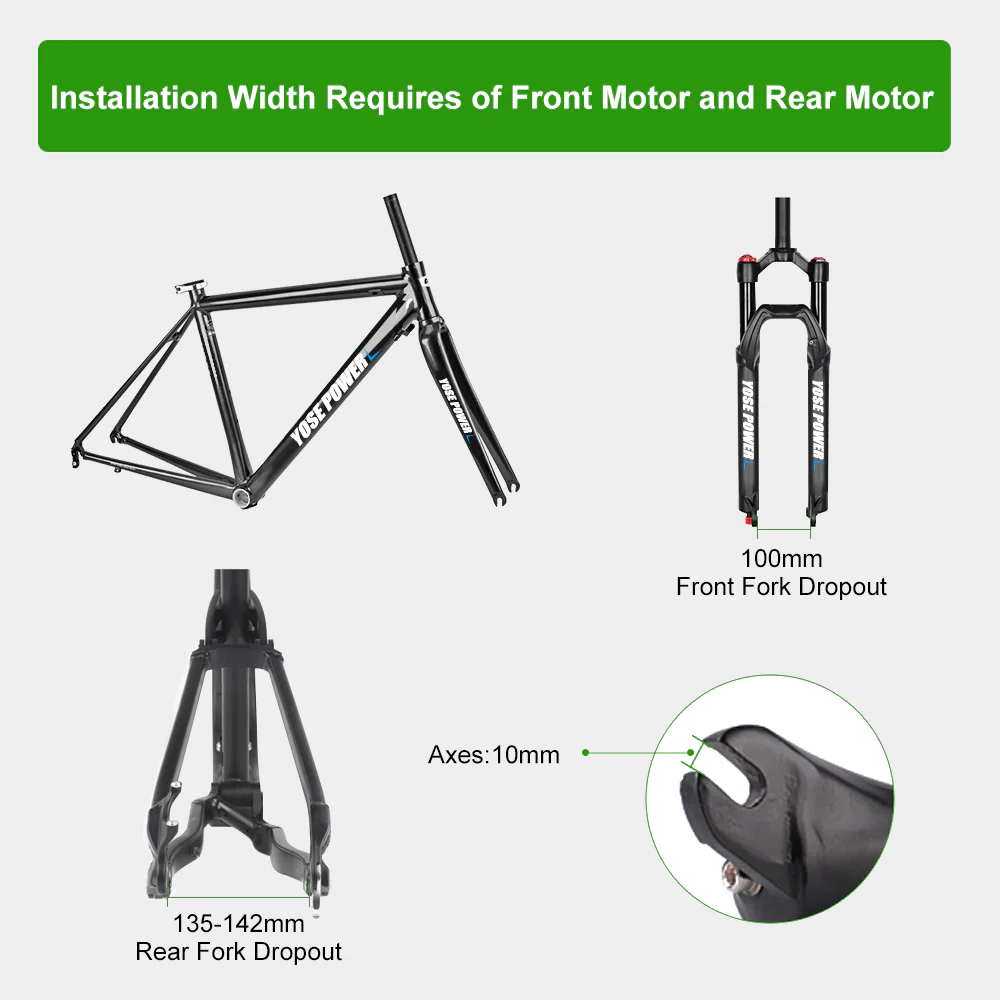

6) requested installation width between forks is 100mm;
7) 36V 15A Lishui controller, connected to motor, battery, PAS sensor and 5into1 cable;

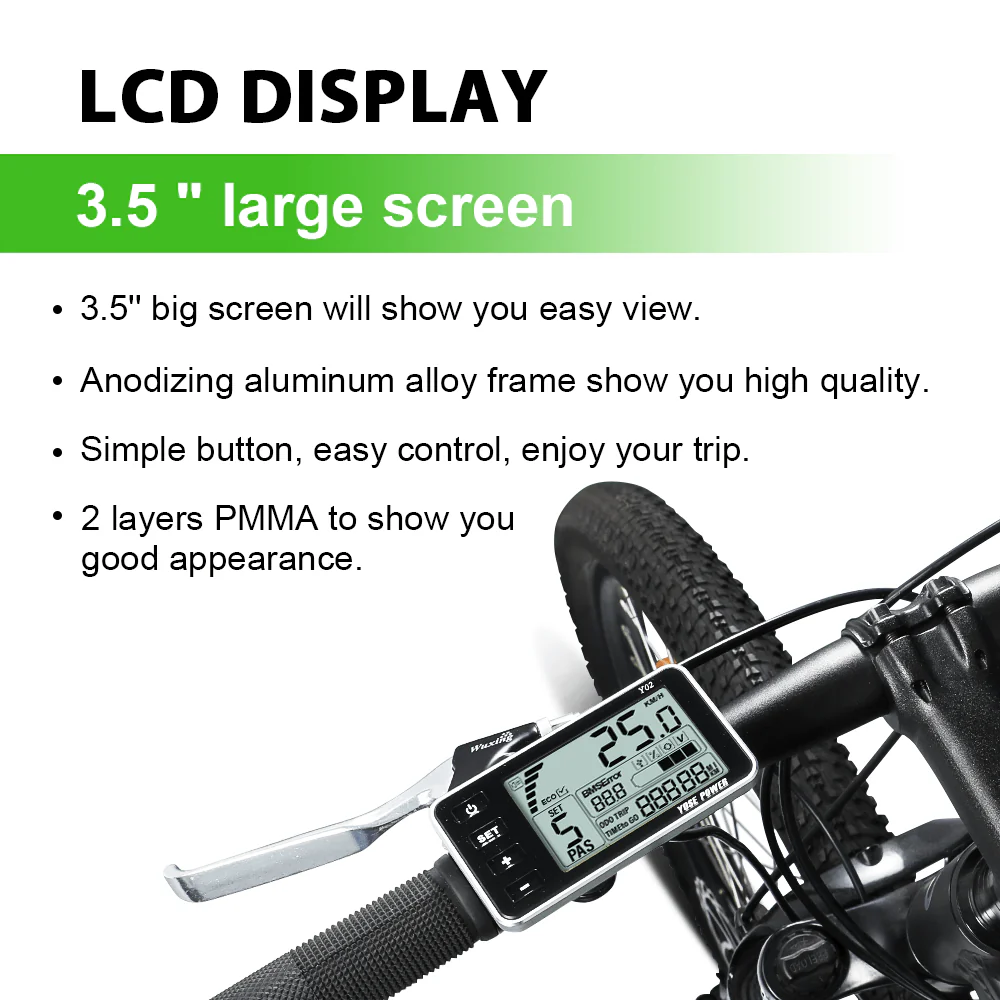

8) 36V Dashi C500 LCD display with backlight, 5 assist levels;

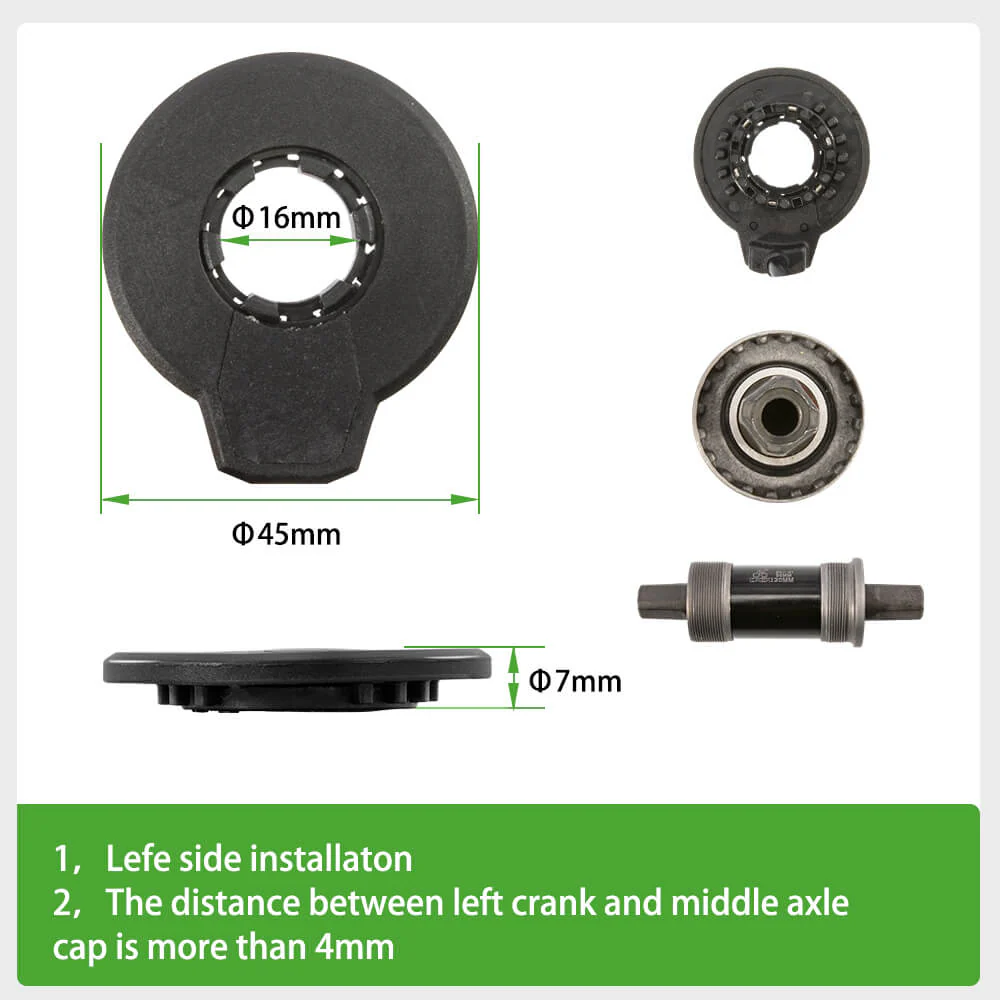

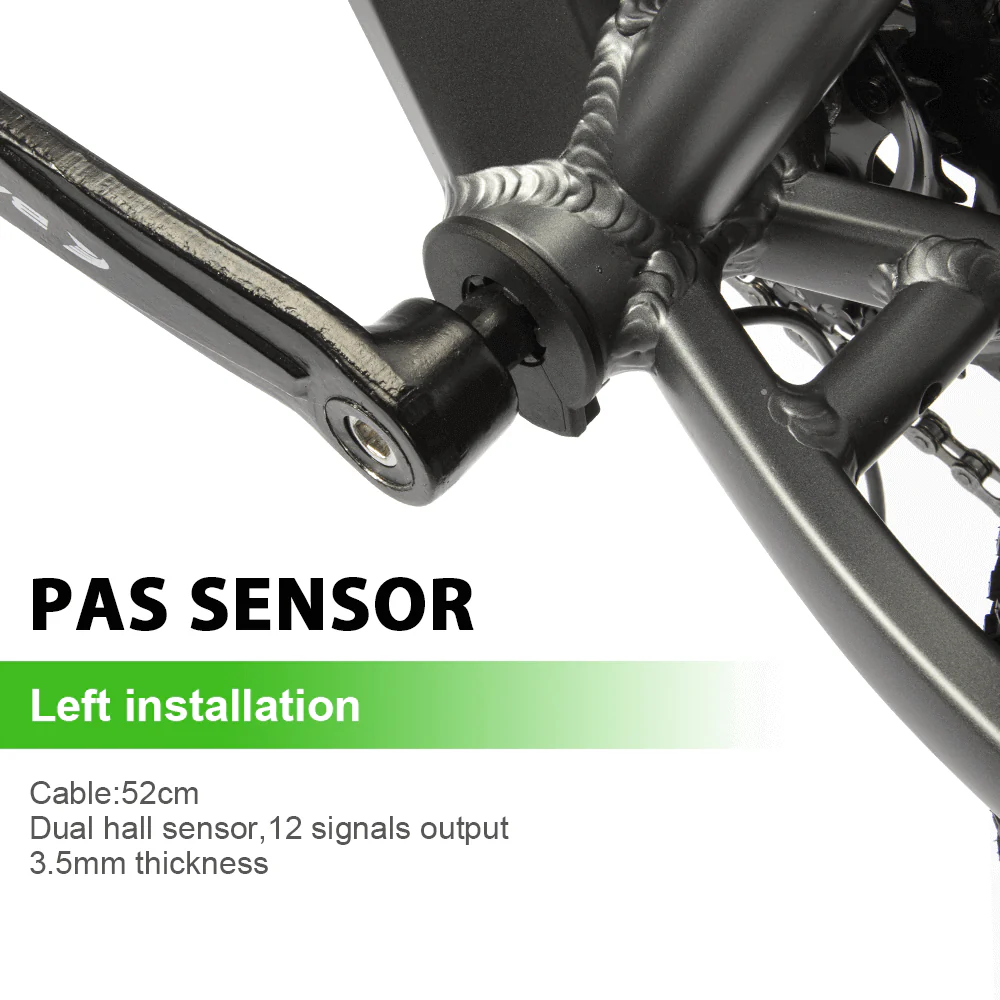

9) PAS sensor for left side of bottom bracket, double hall sensor, 12 signals output;
10) thumb throttle;
11) mechanical brake levers;
12) front light, switch with clicking ON/OFF Button on display;

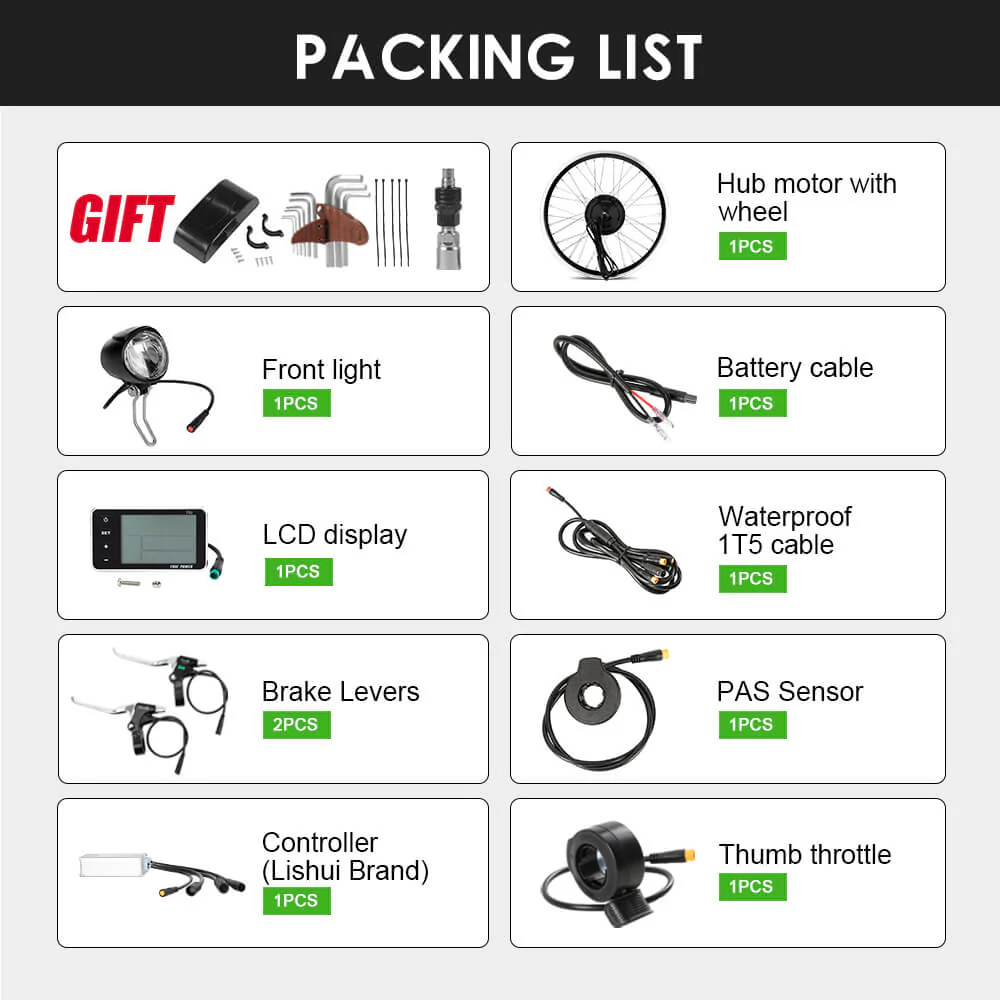

2. Packing List
1 x front motor with 20" rim
1 x controller
1 x LCD display
1 x PAS sensor
1 x thumb throttle
1 x 5into1 cable
2 x brake levers
1 x front light
1 x power cable to battery
1 x controller box
1 x free tools
3. Additional Information
* The warranty of motor is 18 months. Other parts in kit have warranty of 12 months.
* The shipping takes 2-4 working days in Germany. In other countries, the shipping takes 4-8 working days.
* The max speed of motor is 25 km/h. It can be set on display, but the speed limit can't be canceled.
* The pedal sensor in kit doesn't fit for Hollowtech II and Octalink. You will need this pedal sensor: https://yosepower.com/products/hollowtech-ii-sensor
* The brake levers in kit are not suitable for hydraulic brake. You will need these brake sensors: https://yosepower.com/products/hydraulic-brake-sensor
4. Important Notice for Recycling of Used Batteries & Motor Kits
* As a professional seller, we strictly abide by local laws and regulations to ensure product's quality, transportation and storage safety, environmental protection.
* According to electronic consumer goods recycling regulations, batteries and motor kits must not be disposed of with household ordinary waste.
* Consumers are obliged to dispose of the used electronic goods to the professional recycling agency in local for proper disposal. They must not be arbitrarily throw into the trash. Please protect the environment!
5. Copyright Statement
* All the contents including words, pictures and videos are original made by YOSE POWER.
* It is not allowed to plagiarize without permission or we keep the right to pursue legal responsibility.
